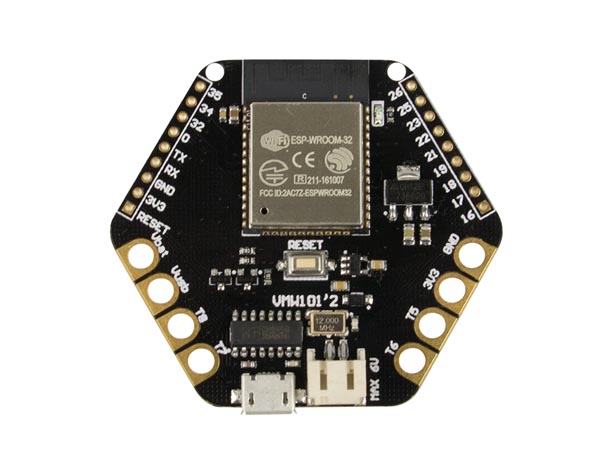

ESP32 WEARABLE DEVELOPMENT BOARD

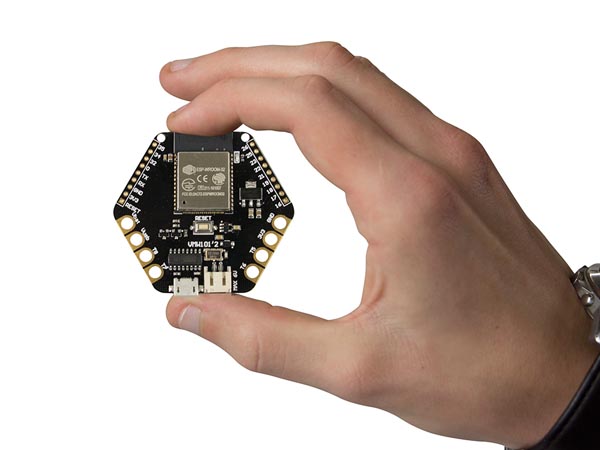

Get ready to meet the most versatile wearable and ESP32 based development board of the moment! Its 100% Arduino compatible and its easy and invisible to wear thanks to its uniquely thin PCB with 8 x sewable pads. Plus, it wont sting you because the PCB design has no sharp edges. Also, 4 of the pads are capacitive touch-enabled.

As for the versatility, this little development board of 56 x 50 x 7.5 mm packs a lot of features such as a hall effect sensor, a temperature sensor and an ultra-low power analog pre-amplifier. But the neatest on-board feature is undoubtedly the ability to connect the board to WiFi and Bluetooth. Getting any ideas? Heres one: connect the board with our BirghtDot wearable LEDs collection and make them react to text or social messages, magnets, sounds, time, temperature and more!

You can easily connect this wearable with a battery thanks to the JST connector and you dont have to worry about high power consumption because the board also features a deep sleep modus to keep its consumption to a minimum when you dont need it. To top things off, this thin board is at least 10 times faster than an Arduino Uno because of its super high 240 MHz clock.

Go take a look at the BrightDot wearable LED boards and get creative!

Features
on board WiFi and Bluetooth
8 x easy sewable pads:
4 x regular power pads
4 x capacitive touch-enabled pads
1 x on-board orange LED
hall effect sensor
temperature sensor
ultra-low power analog pre-amplifier
integrated LiPo battery charger
dedicated reset button
2 × 8-bit DACs
ultra-thin PCB
Arduino compatible
compatible with all BrightDot wearable LED boards
based on the ESP32
SPI, I2S, I2C and UART interfaces
the LED PWM, UART, I2C, I2S, and general purpose SPI functions can be configured to any GPIO
12-bit SAR ADC
LED PWM (up to 16 channels)
deep sleep mode to lower power consumption when preferable

Specifications
general purpose IO : 17
processors:
CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS
ultra low power (ULP) co-processor
memory:
520 KB SRAM
448 KB ROM
wireless connectivity:
WiFi: 802.11 b/g/n
Bluetooth: v4.2 BR/EDR and BLE
power management:
max current consumption : 300 mA
deep sleep power consumption : 10 µA
max battery input voltage: 6 V
max battery charge current : 450 mA
dimensions: 56 x 50 x 7.5 mm (W x L x H)
