DETEKTOR KABELŮ S TÓNOVÝM GENERÁTOREM

Features

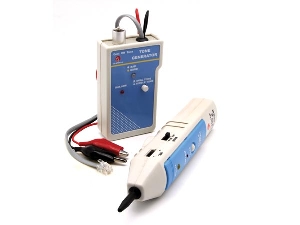

network tester: consists of a tone generator and a probe
method: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
signal viewing in 3 modes: lamp (L), speaker (SP) or both (S&L)
tone generator output (square waveform): single (900 Hz) or dual (900 - 1000 Hz)

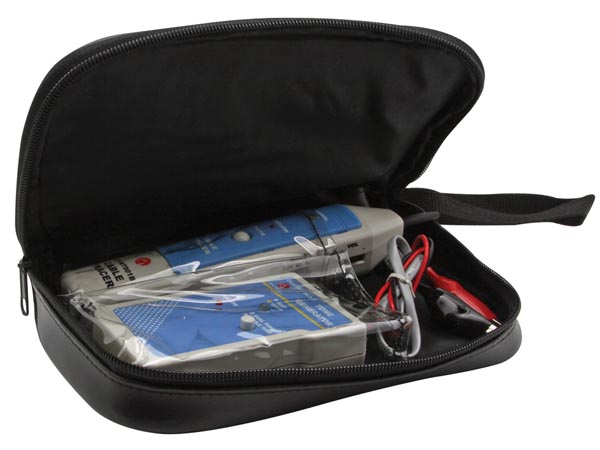

comes with: soft carrying bag

Specifications
tone generator:
working voltage: DC 9 V ± 15 % (battery not incl.)
working current: 10 mA (intermittent tone) / 20 mA (continuous tone)
output wave form: square wave signals ± 10 Vpp
single audio frequency: ± 900 Hz
dual audio frequency: ± 900 Hz - 1000 Hz
dimensions: 115 x 62 x 27 mm
weight: 95 g
probe:
working voltage: DC 9 V ± 15% (battery not incl.)
working current: 25 mA (L) / 80 mA (max. SP volume) / 100 mA (max S&L volume)
max. reception sensitivity: > 30 mV
maximum output volume: ± 120 dB
dimensions: 205 x 40 x 38 mm
weight: ± 80 g
